3ft Led Batten Light

3ft Led Batten Light

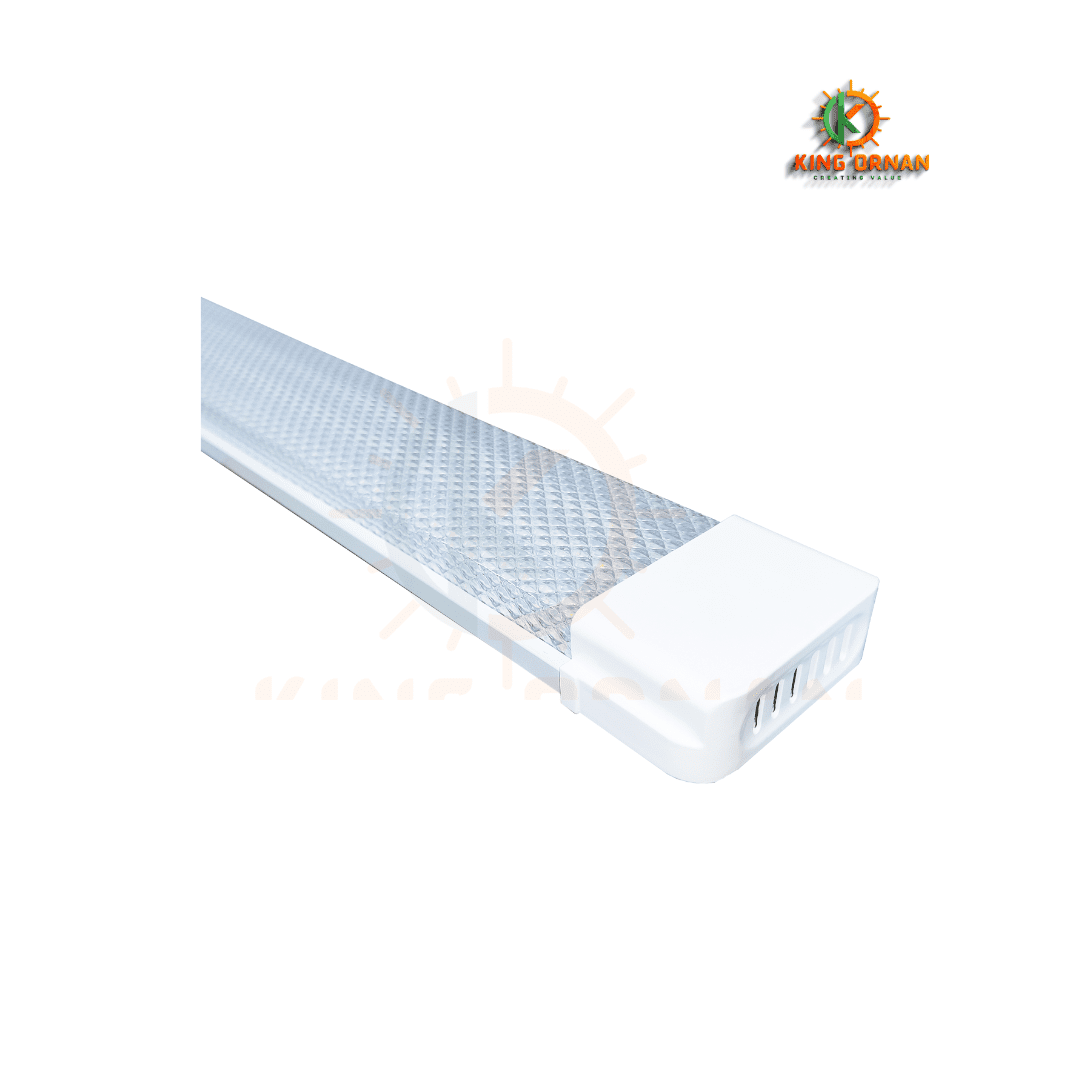

The main feature of the diamond crystal LED Led Batten Light is the diamond crystal cover, which is a diamond-shaped diffusion cover that distributes light evenly in an area, thus avoiding dark areas and shadows of light. Improve the lighting effect and provide a more comfortable lighting environment. This LED Led Batten Light is mainly available in 2FT/3FT /4FT sizes.

Features:

Additional information

Type

Batten light

Model No

OJL

Light Source

Led

Color Temperature

3000K-6000K

CRI

>80

Power Factor

0.5

Input Voltage

165-265V

Warranty

1/2/3 Years

Certification

CB,SASO,CE,RoHS,UL,ETLCertified

SPECIFICATION

sizepowervoltage(V)LM/WLumen(LM)Led chips quantityCRI(Ra)power factor(PF)color temperatureLed chips specificationwithstand voltage(V)
0.6M27W165-265100±%52700±%5144800.53000K
4000K
6000K
3.0-3.1V
0.2W/pc
1500
1.2M54W165-265100±%55400±%5288800.53000K
4000K
6000K
3.0-3.1V
0.2W/pc
1500
1.2M72W165-265100±%57200±%5360800.53000K
4000K
6000K
3.0-3.1V
0.2W/pc
1500


Material and finished

High-quality iron profiles, durable white powder-coated finish

Cover: transparent pc material, UV resistant. High light transmission rate of more than 90%, strong sealing performance.

Chips: LUMILEDS/EPISTAR/ SAMSUNG SMD2835 chips, 0.5W/chips. High lumens output.

Driver: Isolated constant current led driver, safe solution. Strong surge protection.

  • Bracket: Metal, black powder-coated finished. 180° rotation.
  • Stand: stainless steel
  • Cables: 0.75²*3 input cable, High and low- temperature resistance, good insulation performance

Electrical & Optical

  • Input voltage: 85-265VAC 50/60Hz.
  • Beam angle: 180° large distribution
  • Color temperature: 3000K/4500K/6500K
  • Power Factor: >0.6
  • THD: <15%
  • CRI: >80
  • SDCM: <5
  • Efficiency: >88%
  • Working temperature: -15℃/+45℃
  • CB SASO CE RoHS Certified
  • Warranty: 2/3 Years

Applications

  • Hotel & Hospitality Lighting
  • Office, meeting room lighting
  • Home, bar lighting
  • Lighting for entertainment venues

IMAGES

VIDEOS

FAQs

Payment of our company will be T/T, L/C, etc

Energy saving by about 80% compared to traditional.

LED batten light is an electrical accessory that contains a tube light and provides artificial light and can be mounted on the ceiling or wall.

Yes, energy saving and environmental protection.

If you want install in Kitchen, it is ok.

Certifications
