Alloy panel light

Alloy panel light

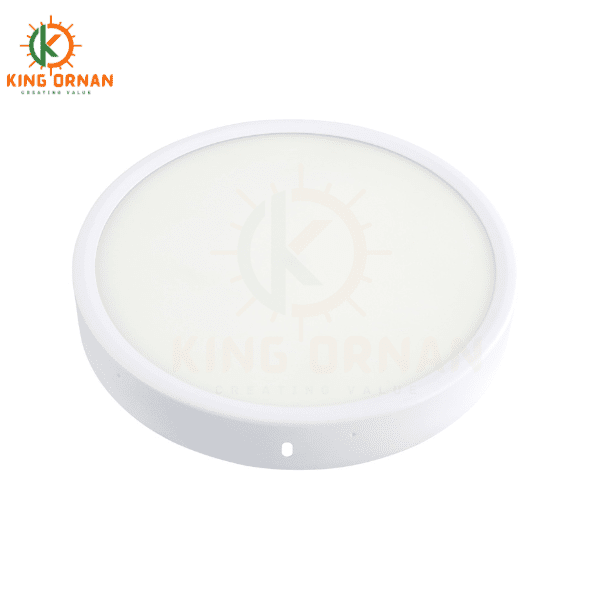

The panel light is made of reflective panel with uniform luminescence and sealed design, combined with efficient light guide plate and aluminum alloy material. Uniform luminous effect, higher illumination.

Features:

Additional information

Input voltage

85-265VAC 50/60Hz.

Beam angle

120° large distribution

Color temperature

3000K/4500K/6500K

Power Factor

>0.5

THD

<10

CRI

>80

SDCM

<10

Efficiency

>90%

Surge protection

According customer requirement

Working temperature

-15℃/+45℃

Warranty

1/2/3 Years

Certification

CB,SASO,CE,RoHS,UL,ETLCertified

Short description:

Material and finished

  • Housing: Stamping ironbody, durable white powder-coated finish
  • LGP:Glass/PS/PMMA
  • Cover: Stamping body, durable white powder-coated finish
  • Chips: LUMILEDS/EPISTAR/ SAMSUNG SMD2835 chips, 0.2W/chips. High lumens output.
  • Driver: Isolated constant current led driver, safe solution. Strong surge protection.
  • Screws: Stainless steel
  • Bracket: Metal, white powder-coated finished.
  • Cables: 0.5²*2input cable, High and low- temperature resistance, good insulation performance, cable diameter can be adjusted according to market requirements

Electrical & Optical

  • Input voltage: 85-265VAC 50/60Hz.
  • Beam angle: 120° large distribution
  • Color temperature: 3000K/4500K/6500K
  • Power Factor: >0.5
  • THD: <10
  • CRI: >80
  • SDCM: <10
  • Efficiency: >88%
  • Surge protection: According to requirement
  • Working temperature: -30℃/+55℃
  • CB SASO CE RoHS ISO Certified
  • Warranty:1/ 2/3 Years

Additional Options

  • Photocell (Dusk to dawn)/Time control
  • Dimming (PWM/0-10V/DALI Dimmable)
  • Different kind of single color/Metallic Color/Wooden color

Standard accessories

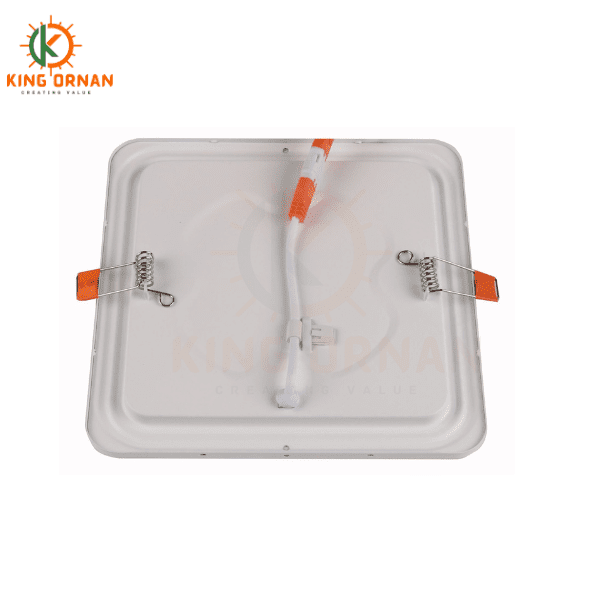

Slim:springs,can offer finished assembly

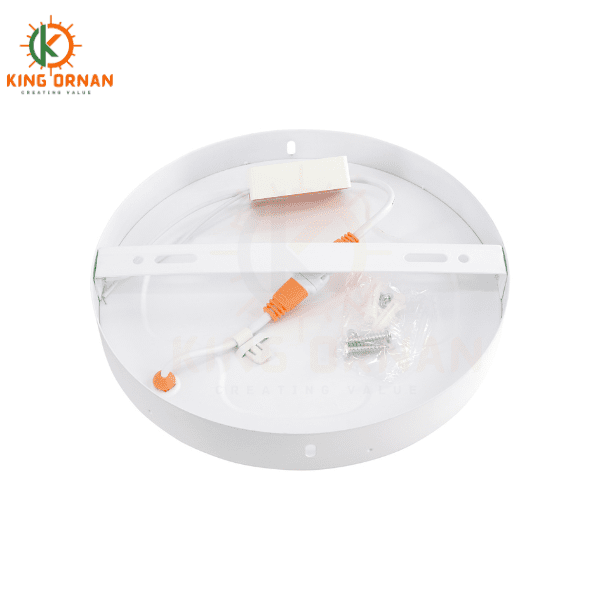

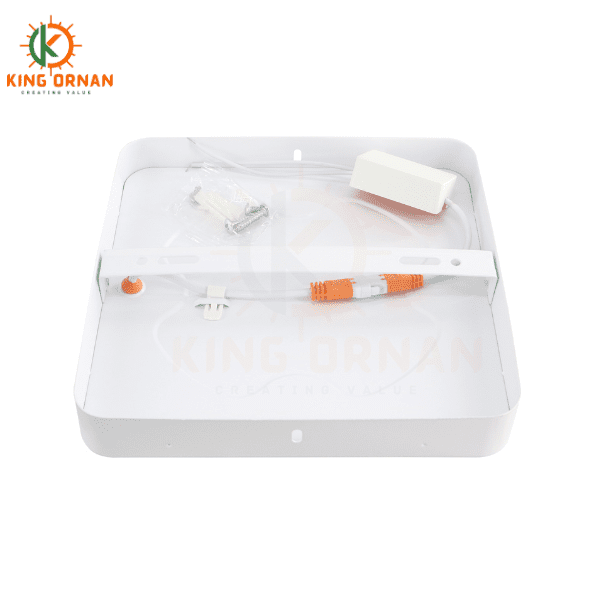

Surface:Bracket,screws

installation manual

Optional accessories

connecting box

Sales repair spare parts list

·Power supply,·light source:,·Drive board,·Spring


Power ITEM NO Size of face ring
mm
VOLTAGE
V
PF RA lUMINOUS
(Lm)
Life time(H) carton size PCS/CTN
3W OMT1-03 φ87 φ65 16 85-265V 0.5 80 40LM/W 20000 55.5 24.5 27 100
6W OMT1-06 φ118 φ95 16 85-265V 0.5 80 50LM/W 20000 65.5 24.5 32 100
9W OMT1-09 φ143 φ120 16 85-265V 0.5 80 60LM/W 20000 46 24.5 35.5 60
12W OMT1-12 φ168 φ140 16 85-265V 0.5 80 70LM/W 20000 47 36 20.5 40
15W OMT1-15 φ192 φ160 16 85-265V 0.5 80 70LM/W 20000 47 40.5 22.5 40
18W OMT1-18 φ223 φ190 16 85-265V 0.5 80 80LM/W 20000 47 47 25 40
24W OMT1-24 φ300 φ270 16 85-265V 0.5 80 80LM/W 20000 47 32 34 20
3W OMT2-03 89×89 65×65 16 85-265V 0.5 80 40LM/W 20000 50.5 30 27 100
6W OMT2-06 118×118 95×95 16 85-265V 0.5 80 50LM/W 20000 65.5 30 32 100
9W OMT2-09 146×146 120×120 16 85-265V 0.5 80 60LM/W 20000 45 30 36 60
12W OMT2-12 170×170 140×140 16 85-265V 0.5 80 70LM/W 20000 40 30 36 40
15W OMT2-15 193×193 160×160 16 85-265V 0.5 80 70LM/W 20000 45 30 41 40
18W OMT2-18 223×223 190×190 16 85-265V 0.5 80 80LM/W 20000 49 30 47.5 40
24W OMT2-24 300*300 270*270 16 85-265V 0.5 80 80LM/W 20000 62 30 33.5 20
6W OMT3-6 φ95 / 28 85-265V 0.5 80 50LM/W 20000 53 34 23 100
12W OMT3-12 φ140 / 28 85-265V 0.5 80 70LM/W 20000 34 30.5 32 40
18W OMT3-18 φ190 / 28 85-265V 0.5 80 80LM/W 20000 51 40.5 21.5 30
24W OMT3-24 φ265 / 28 85-265V 0.5 80 80LM/W 20000 55 34 28.5 20
6W OMT4-6 93×93 / 28 85-265V 0.5 80 50LM/W 20000 53 34 23 100
12W OMT4-12 140×140 / 28 85-265V 0.5 80 70LM/W 20000 34 30.5 32 40
18W OMT4-18 192×192 / 28 85-265V 0.5 80 80LM/W 20000 51 40.5 21.5 30
24W OMT4-24 265×265 / 28 85-265V 0.5 80 80LM/W 20000 55 34 28.5 20
