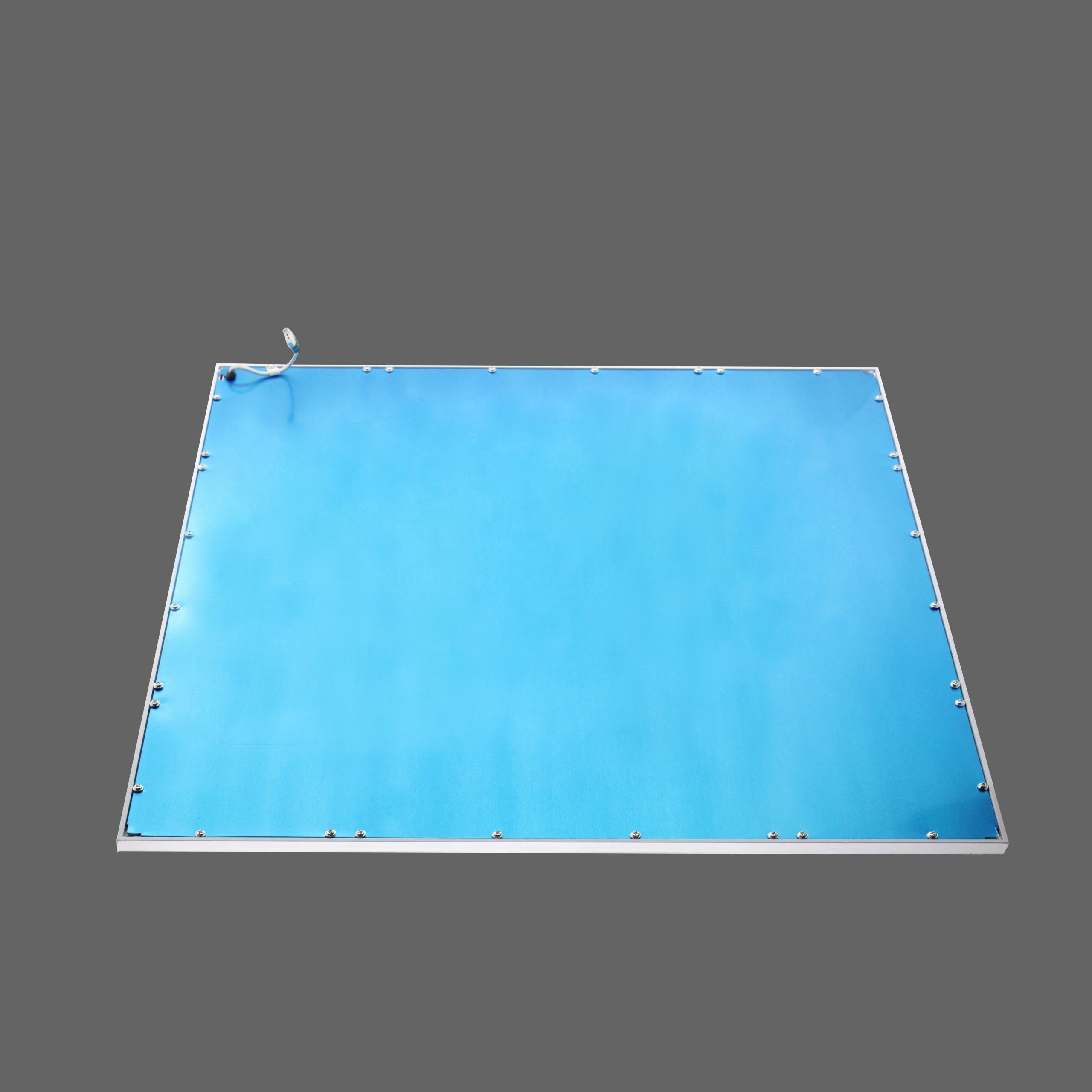

Flat led Panel Light

Flat led Panel Light

LED panel light adopts ultra-high brightness LED as the light source, which has the characteristics of flexible design, high illumination, less heat, long life, diverse ways of change, strong vibration resistance, strong control ability and low power consumption. It is suitable for indoor lighting in hotels, bars, western restaurants, cafes, home interior decoration and so on.

Features:

Additional information

Input voltage

85-265VAC 50/60Hz.

Beam angle

120° large distribution

Color temperature

3000K/4500K/6500K

Power Factor

>0.5

THD

<10

CRI

>80

SDCM

<10

Efficiency

>90%

Surge protection

According customer requirement

Working temperature

-15℃/+45℃

Warranty

1/2/3 Years

Certification

CB,SASO,CE,RoHS,UL,ETLCertified

Short description:

Material and finished

  • Housing:Aluminium section welding,, durable white powder-coated finish、silver oxide treatment
  • LGP:PS/PMMA
  • Cover:Stamped iron coated
  • Chips: LUMILEDS/EPISTAR/ SAMSUNG SMD4014 chips, 0.2W/chips. High lumens output.
  • Driver: Isolated constant current led driver, safe solution. Strong surge protection.
  • Screws: Stainless steel
  • Surface Bracket: Metal, white powder-coated finished.
  • Cables: 0.5²*2input cable, High and low- temperature resistance, good insulation performance, cable ****diameter can be adjusted according to market requirements.

Electrical & Optical

  • Input voltage: 85-265VAC 50/60Hz.
  • Beam angle: 120° large distribution
  • Color temperature: 3000K/4500K/6500K
  • Power Factor: >0.5
  • THD: <10
  • CRI: >80
  • SDCM: <10
  • Efficiency: >88%
  • Surge protection: According to requirement
  • Working temperature: -30℃/+55℃
  • CB SASO CE RoHS ISO Certified
  • Warranty: 2/3 Years

Additional Options

  • Photocell (Dusk to dawn)/Time control
  • Dimming (PWM/0-10V/DALI Dimmable)

Standard accessories

Surface:Bracket,screws

installation manual

Optional accessories

connecting box, handing cable

Sales repair spare parts list

·Power supply,·light source:,·Drive board





PowerItem numberSize of face ring
mm
VOLTAGE
V
PFRAlUMINOUS
(Lm)
Life time(H)carton sizePCS/CTN
24WODDA-24 295*595/885-265V0.58019202000067353310
40WODDA-40595*595/885-265V0.5803200200006518678
48WODDA-48595*595/885-265V0.5803840200006518678
64WODDA-64595*595/885-265V0.5805200200006518678
72WODDA-72595*595/885-265V0.5805760200006518678
40WODDB-40 295*1195/885-265V0.5803200200001281832.56
48WODDB-48 295*1195/885-265V0.5803840200001281832.56
72WODDB-72595*1195/885-265V0.5805760200001281862.56
32WODDC-32ø400/4085-265V0.58028002000049.54242.510
42WODDC-42ø500/4085-265V0.580370020000522552.55
48WODDC-48ø600/4085-265V0.580432020000622562.55
24WODDD-24 300* 300/4085-265V0.58020002000046333510
40WODDD3*6-40 300*600/4085-265V0.58032002000063493510
36WODDD-36 300*1200/4085-265V0.5802600200003326.51235
48WODDD3*12-48 300*1200/4085-265V0.5803800200003326.51235
32WODDD-32400*400/4085-265V0.58028002000049.54242.510
40WODDD5*5-40500*500/4085-265V0.5 320020000522552.55
48WODDD6*6-48600*600/4085-265V0.580432020000622562.55
