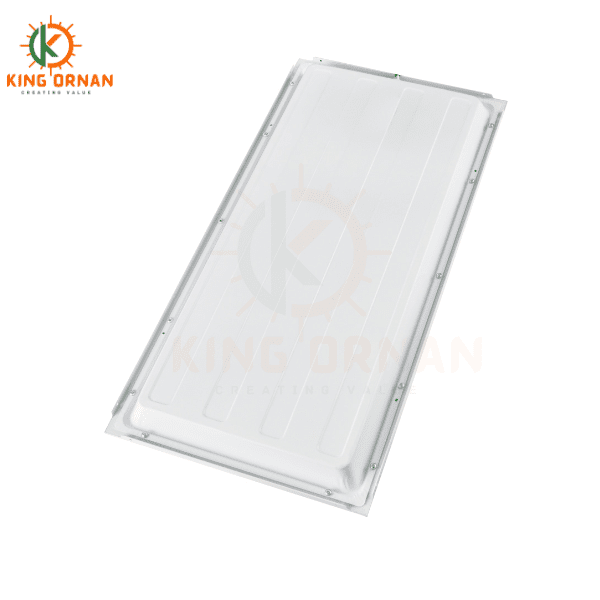

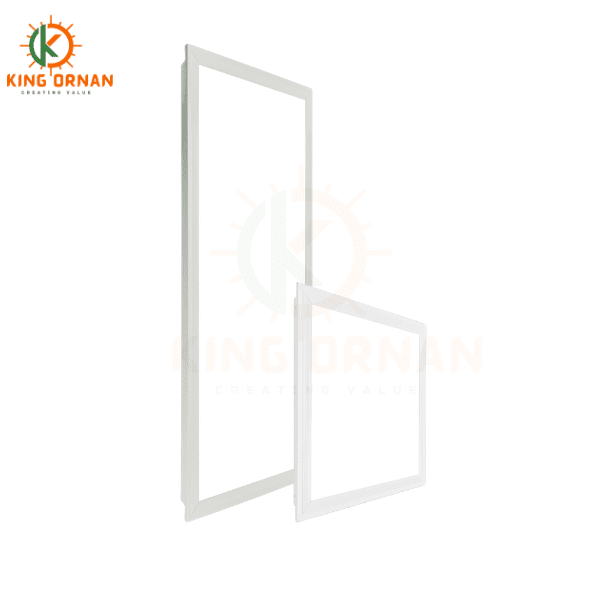

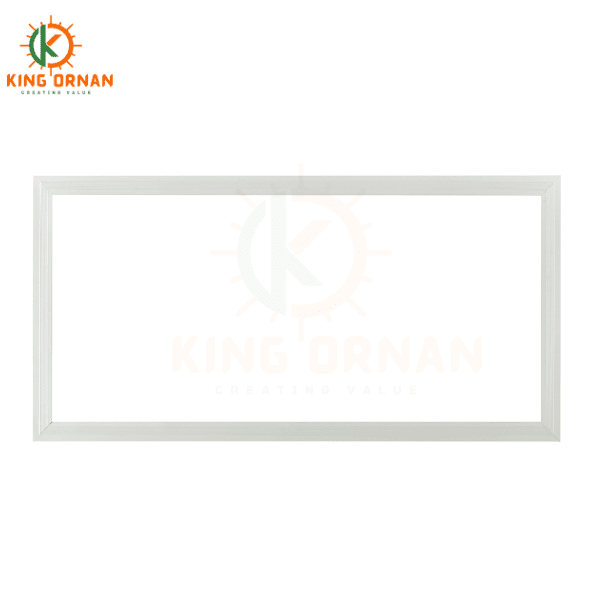

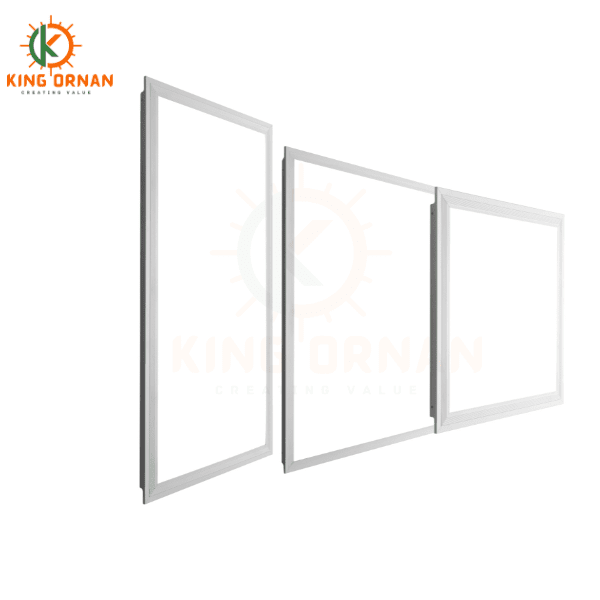

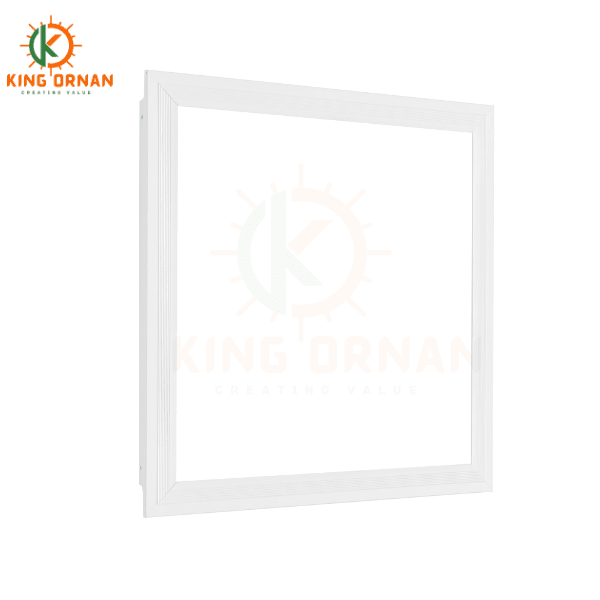

LED Backlit Panel light

LED Backlit Panel light

LED panel light adopts ultra-high brightness LED as the light source, which has the characteristics of flexible design, high illumination, less heat, long life, diverse ways of change, strong vibration resistance, strong control ability and low power consumption. It is suitable for indoor lighting in hotels, bars, western restaurants, cafes, home interior decoration and so on.

Features:

Additional information

Input voltage

85-265VAC 50/60Hz.

Beam angle

120° large distribution

Color temperature

3000K/4500K/6500K

Power Factor

>0.5

THD

<10

CRI

>80

SDCM

<10

Efficiency

>90%

Surge protection

According customer requirement

Working temperature

-15℃/+45℃

Warranty

1/2/3 Years

Certification

CB,SASO,CE,RoHS,UL,ETLCertified

Short description:

Material and finished

  • Housing:Aluminium section welding,or splicing, durable white powder-coated finish
  • Diffuser plate:PS
  • Cover: Double-sided powder coating on iron, or tectorial membrane
  • Chips: LUMILEDS/EPISTAR/ SAMSUNG SMD1229 chips, 1W/chips. High lumens output.
  • Driver: Isolated constant current led driver, safe solution. Strong surge protection.
  • Screws: Stainless steel
  • Surface Bracket: Metal, white powder-coated finished.
  • Cables: 0.5²*2input cable, High and low- temperature resistance, good insulation performance, cable ****diameter can be adjusted according to market requirements.

Electrical & Optical

  • Input voltage: 85-265VAC 50/60Hz.
  • Beam angle: 120° large distribution
  • Color temperature: 3000K/4500K/6500K
  • Power Factor: >0.5
  • THD: <10
  • CRI: >80
  • SDCM: <10
  • Efficiency: >88%
  • Surge protection: According to requirment
  • Working temperature: -30℃/+55℃
  • CB SASO CE RoHS ISO Certified
  • Warranty: 2/3 Years

Applications

  • Home lighting
  • Office lighting
  • The hotel
  • The mall
  • The basement

Additional Options

  • Photocell (Dusk to dawn)/Time control
  • Dimming (PWM/0-10V/DALI Dimmable)

Standard accessories

Surface:Bracket,screws

installation manual

Optional accessories

connecting box, handing cable, transition box

Sales repair spare parts list



·Power supply,·light source:,·Drive board



PowerItem numberSize of face ring
mm
VOLTAGE
V
PFRAlUMINOUS
(Lm)
Life time(H)carton sizePCS/CTN
8WODD3*3A-08300*300/30mm85-265V0.5806002000074326340
16WODD3*3A-16300*300/30mm85-265V0.58012002000055326330
12WODD3*6A-12300*600/30mm85-265V0.5809002000074326320
20WODD3*6A-20300*600/30mm85-265V0.58015002000055326315
20WODD6*6A-20600*600/30mm85-265V0.58015002000061.533.56210
36WODD6*6A-36600*600/30mm85-265V0.58027002000063.53363.510
48WODD6*6A-48600*600/20mm85-265V0.58040802000063.5266410
60WODD6*6A-60600*600/20mm85-265V0.58051002000063.5266410
36WODD3*12A-36300*1200/30mm85-265V0.580306020000123.528348
48WODD3*12A-48300*1200/30mm85-265V0.580408020000123.528348
72WODD3*12A-72600*1200/30mm85-265V0.580612020000123.522646
96WODD3*12A-96600*1200/30mm85-265V0.580816020000123.522646
16WODD3*3B-16300*300/40mm85-265V0.58012002000074326320
24WODD3*6B-24300*600/40mm85-265V0.5801800200005231.56210
48WODD6*6B-48600*600/40mm85-265V0.58040802000063.53363.58
48WODD3*12B-48300*1200/40mm85-265V0.580408020000123.528346
96WOMD6*12B-96600*1200/40mm85-265V0.580816020000123.522645
30WOMD4*4C-30400*400/30mm85-265V0.58025502000045404510
40WOMD6.2*6.2*C-40620*620/30mm85-265V0.58034002000065.521665
40WOMD3.2*12.2*C-40320*1220/30mm85-265V0.580340020000127.52134.55
40WOMD6*6*C-40600*600/40mm85-265V0.58034002000062.524625
40WOMD3*12*C-40300*1200/40mm85-265V0.58034002000032251225
36WOMDD-36595*595/30mm85-265V0.58027002000063.53363.510
40WOMDD-40595*595/30mm85-265V0.58034002000063.53363.510
55WOMDD-55595*595/30mm85-265V0.58046752000063.53363.510
72WOMDD-72595*595/30mm85-265V0.58061202000063.53363.510
