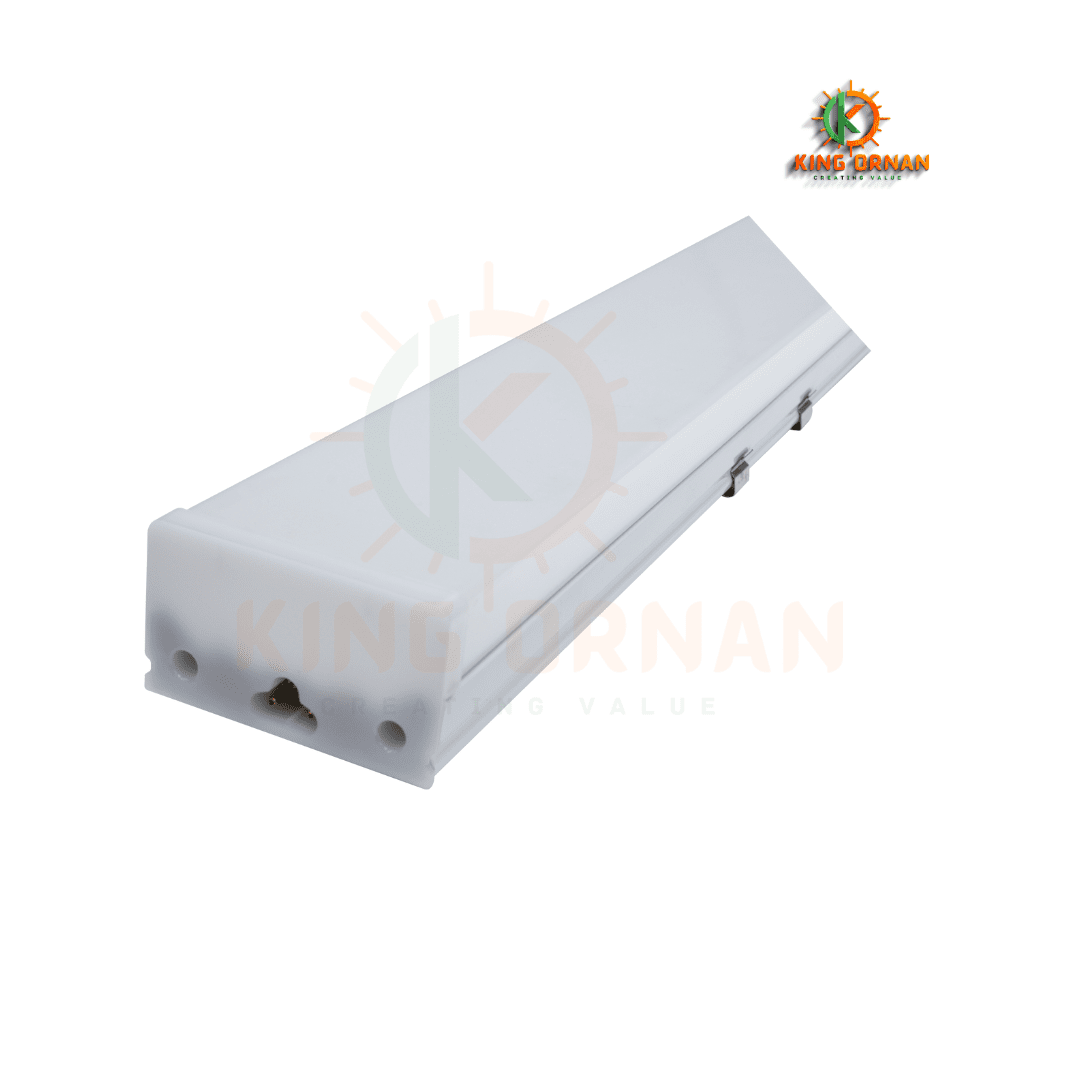

Led Batten Lights 5ft

Led Batten Lights 5ft

A batten light is a long, narrow strip of strong lighting. The term “batten” has its origins in theatre production. The OJS series Batten light uses a five-sided LED lighting design with uniform luminescence and no dark areas. The luminaire is available in 4 and 5-foot lengths for installation in garages and other spaces.

Features:

Additional information

Type

Batten light

Model No

OJS

Light Source

LED

Color Temperature

2700K-6000K

CRI

>80

IP rating

IP20

PF

0.5

Input Voltage

165-265V

Warranty

1/2/3 Years

Certification

CB,SASO,CE,RoHS,UL,ETLCertified

SPECIFICATION

size(mm) power voltage(V) LM/W Lumen(LM) CRI(Ra) power factor(PF) color temperature Led chips specification withstand voltage(V)
1200*50 36W 165-265 80±%5 2880±10% 80 0.5 3000K 4000K 6000K 3.0-3.1V 0.2W/pc 1500
1200*70 54W 165-265 80±%5 3840±10% 80 0.5 3000K 4000K 6000K 3.0-3.1V 0.2W/pc 1500
1200*100 100W 165-265 80±%5 3840±%5 80 0.5 3000K 4000K 6000K 3.0-3.1V 0.2W/pc 1500
1500*70 72W 165-265 80±%5 5760±%5 80 0.5 3000K 4000K 6000K 3.0-3.1V 0.2W/pc 1500

Material and finished

High-quality aluminum profiles, oxidized (silver)

Cover: transparent pc material, UV resistant. High light transmission rate of more than 90%, strong sealing performance.

Chips: LUMILEDS/EPISTAR/ SAMSUNG SMD2835 chips, 0.5W/chips. High lumens output.

Driver: Isolated constant current led driver, safe solution. Strong surge protection.

  • Bracket: Metal, black powder-coated finished. 180° rotation.
  • Stand: stainless steel
  • Cables: 0.75²*3 input cable, High and low- temperature resistance, good insulation performance

Electrical & Optical

  • Input voltage: 85-265VAC 50/60Hz.
  • Beam angle: 180° large distribution
  • Color temperature: 3000K/4500K/6500K
  • Power Factor: >0.6
  • THD: <15%
  • CRI: >80
  • SDCM: <5
  • Efficiency: >88%
  • Working temperature: -15℃/+45℃
  • CB SASO CE RoHS Certified
  • Warranty: 2/3 Years

Applications

  • Hotel & Hospitality Lighting
  • Office, meeting room lighting
  • Home, bar lighting
  • Lighting for entertainment venues

IMAGES

VIDEOS

FAQs

What are your terms of payment?

Energy saving by about 80% compared to traditional.

LED batten light is an electrical accessory that contains a tube light and provides artificial light and can be mounted on the ceiling or wall.

Yes, energy saving and environmental protection.

If you want install in Kitchen, it is ok.

Certifications
