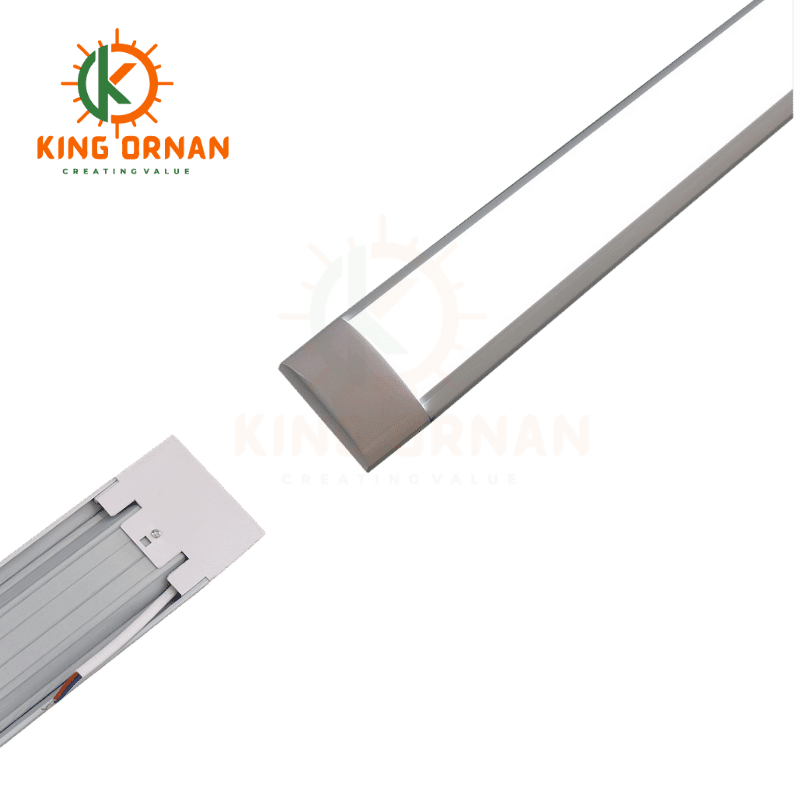

slimline led batten light

slimline led batten light

OJT series slimline led batten light is the most cost-effective style. It has a high-quality iron alloy lamp base and PP cover composition to ensure the product’s quality in the case of the most cost-effective solution, once launched, widely liked by the majority of customers.

Features:

Additional information

Type

Batten light

Model No

OJT

Light Source

Led

Color Temperature

3000K-6000K

CRI

>80

Power Factor

0.5

Input Voltage

85-265V

Warranty

1/2 Years

Certification

CB,SASO,CE,RoHS,UL,ETLCertified

SPECIFICATION

sizpowervoltage(V)Lumen(LM)LM/WLed chips quantityCRI(Ra)power factor(PF)
1.5M48W85-2653100LM65±%5240800.5
1.2M36W85-2652350LM65±%5192800.5
0.9M24W85-2651750LM65±%5144800.5
0.6M16W85-2651150LM65±%596800.5
0.3M8W85-265580LM65±%548800.5

Material and finished

High-quality iron profiles, durable white powder-coated finish

Cover: PP

Chips: LUMILEDS/EPISTAR/ SAMSUNG SMD2835 chips, 0.2W/chips. High lumens output.

Driver: Isolated constant current led driver, safe solution. Strong surge protection.

  • Bracket: Metal, black powder-coated finish. 180° rotation.
  • Stand: stainless steel
  • Cables: 0.75²*3 input cable, High and low- temperature resistance, good insulation performance

Electrical & Optical

  • Input voltage: 85-265VAC 50/60Hz.
  • Beam angle: 120° large distribution
  • Color temperature: 3000K/4500K/6500K
  • Power Factor: >0.6
  • THD: <15%
  • CRI: >80
  • SDCM: <5
  • Efficiency: >88%
  • Working temperature: -15℃/+45℃
  • CB SASO CE RoHS Certified
  • Warranty: 1/2/3 Years

Applications

  • Hotel & Hospitality Lighting
  • Office, meeting room lighting
  • Home, bar lighting
  • Lighting for entertainment venues

IMAGES

VIDEOS

FAQs

Payment of our company will be T/T, L/C, etc

Energy saving by about 80% compared to traditional.

LED batten light is an electrical accessory that contains a tube light and provides artificial light and can be mounted on the ceiling or wall.

Yes, energy saving and environmental protection.

If you want install in Kitchen, it is ok.
